Products > GPS Tracker

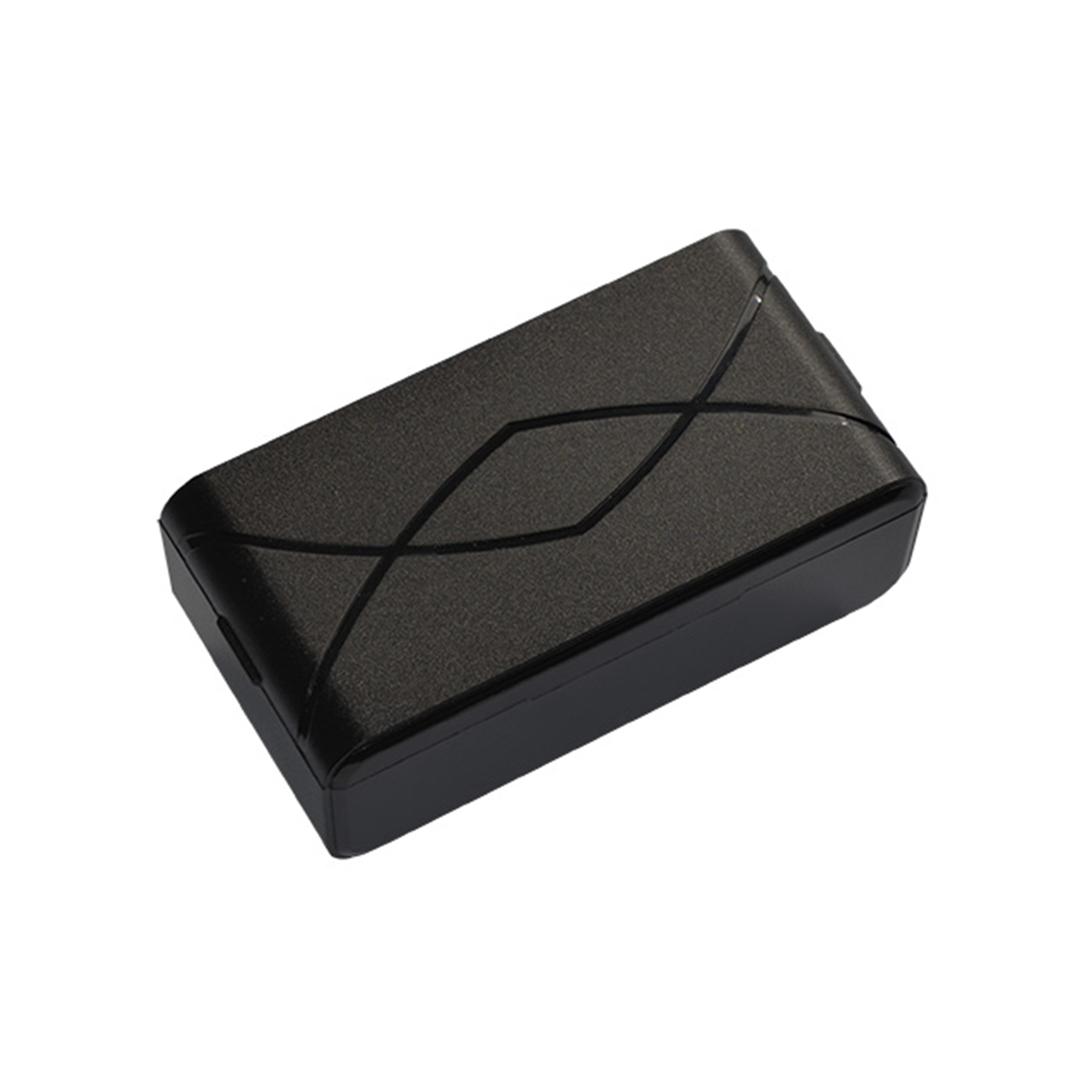

TG-203

TG-203
Long standby GPS | security detection GPS base station locator
Product Name: super long standby vehicle positioning terminal
Product model: TG-203
Product specification: L77mm*W41mm*H27mm
Applicable fields: vehicle leasing, car loan management, tracking investigation, valuable logistics transportation, cargo tracking and other related industries
Product description
Product features
--------------------------------------------------------------------------------------------------------------------------------------------------
major function
-------------------------------------------------------------------------------------------------------------------------------------------------
Main function introduction
-------------------------------------------------------------------------------------------------------------------------------------------------
Alarm mode can set up 4 groups of wake-up time every day, wake up automatically at the set time, and sleep after sending the position data
Timing return mode timing return, then according to the set time to return location data
Week mode can set a time point and choose one week or a few days to send location data after sleep
GPS positioning + base station location, automatically positioning the base station when GPS can not be located
Serial port settings can set IP and port, APN, local number, local school time, alarm clock mode, timing mode, week mode
SMS settings can set IP and port, APN, local number, alarm mode R, timing mode D, week mode W
SMS query return settings parameters
When the message is sent, the mobile phone will edit the <C:TIME> to send the terminal. When the terminal receives the information, it will automatically apply for the time to the platform
When the alarm is in the dark, the detection starts from dark to bright and starts to alarm to the platform. (controllable switch, open by default)
Anti fake base station terminal detects pseudo base station, will refuse connection, anti detection
Specification parameter
-------------------------------------------------------------------------------------------------------------------------------------------------
No. |
Project |
Specification parameter |
1 |
working voltage |
DC 3V |
2 |
工作电流 |
60~80mA@3V |
3 |
Standby current |
>3.5uA |
3 |
Specification size |
L77mm*W41mm*H27mm |
4 |
Positioning mode |
GPSLocation + base station location |
5 |
positioning error |
GPSpositioning error<10m(this data for reference, positioning error and the area of the vehicle terrain and time and other factors) |
基站定位误差根据所在区间基站密度 |
||
6 |
Communication network |
GPRS |
7 |
Communication mode |
UDP |
8 |
Operating temperature range |
-25℃ ~ +75℃ |
9 |
Storage temperature range |
-40℃ ~ +85℃ |
10 |
weight |
100g |
11 |
Battery operating time |
Use a new battery, can work for more than 3 years |
